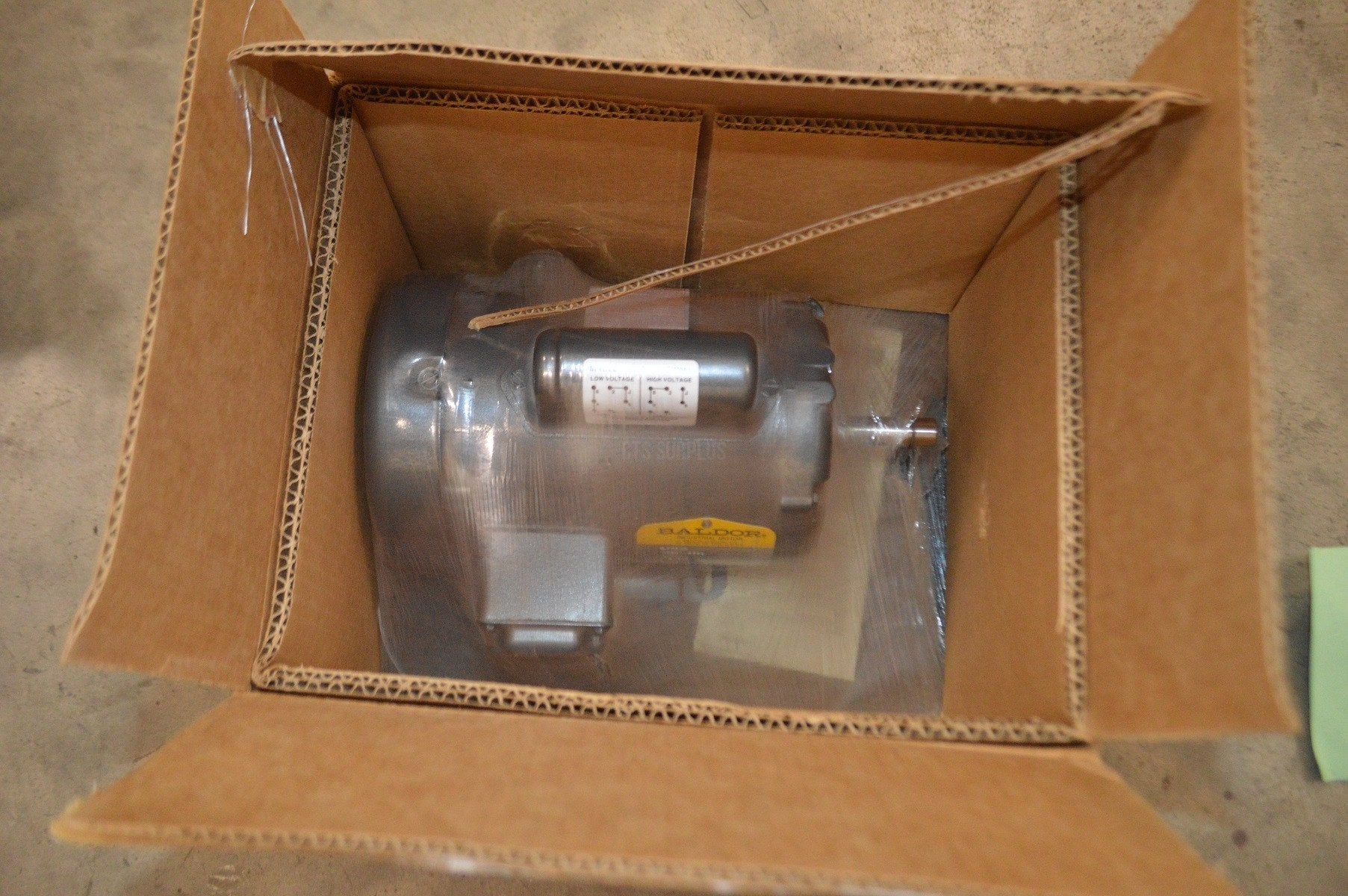

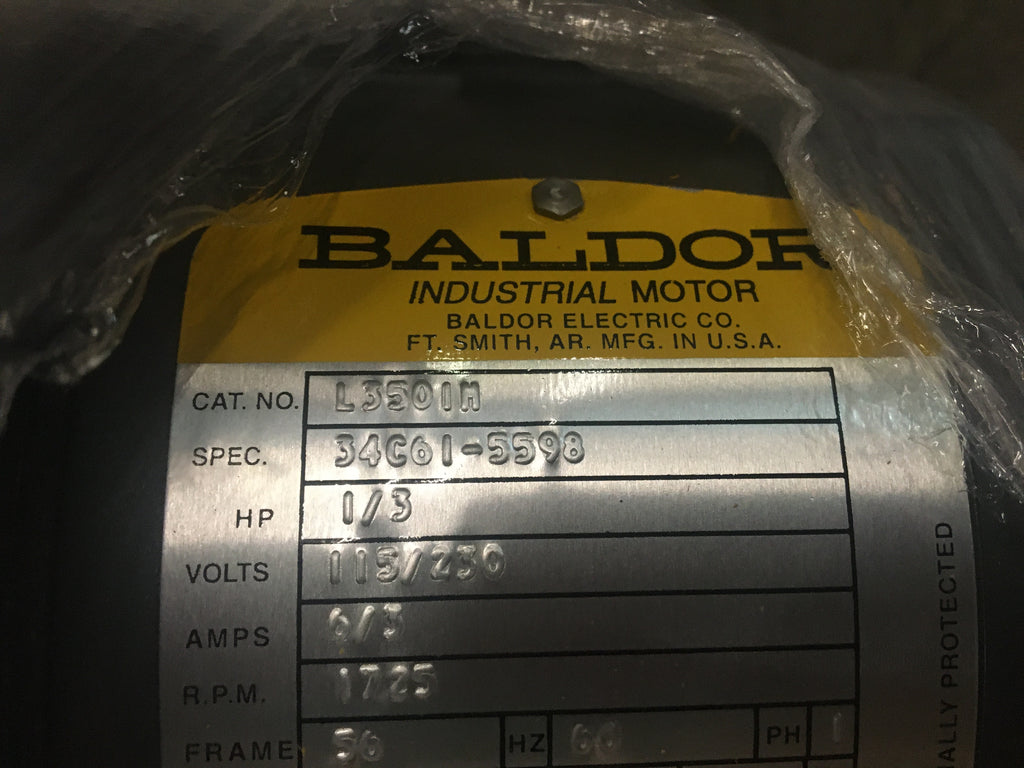

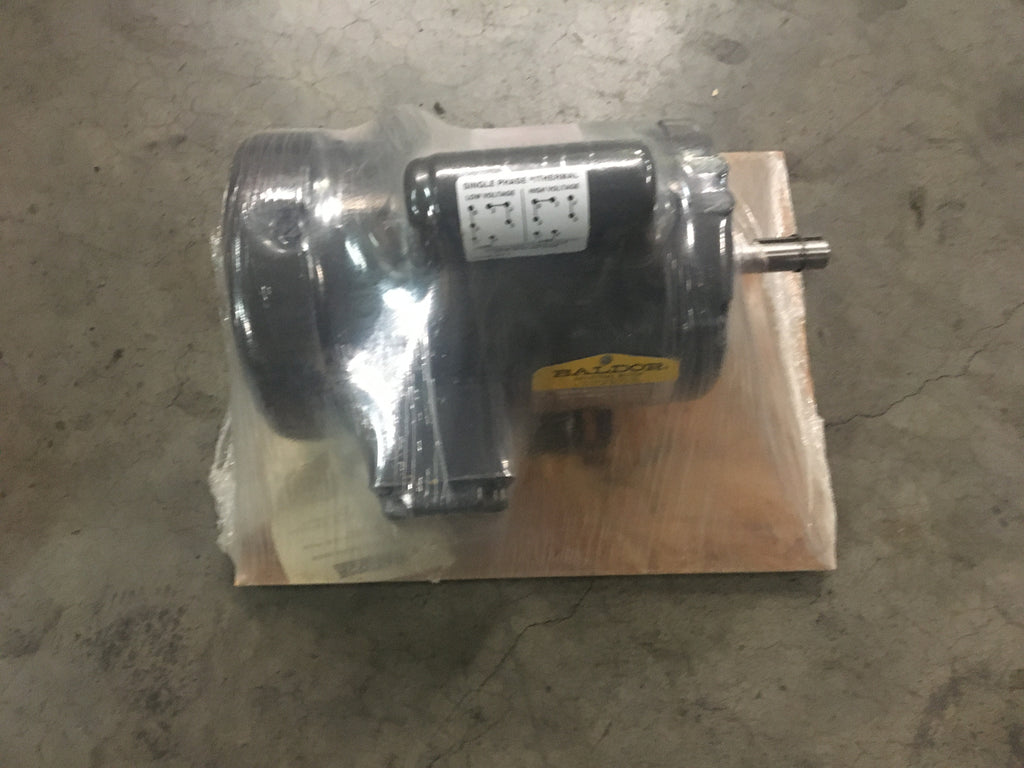

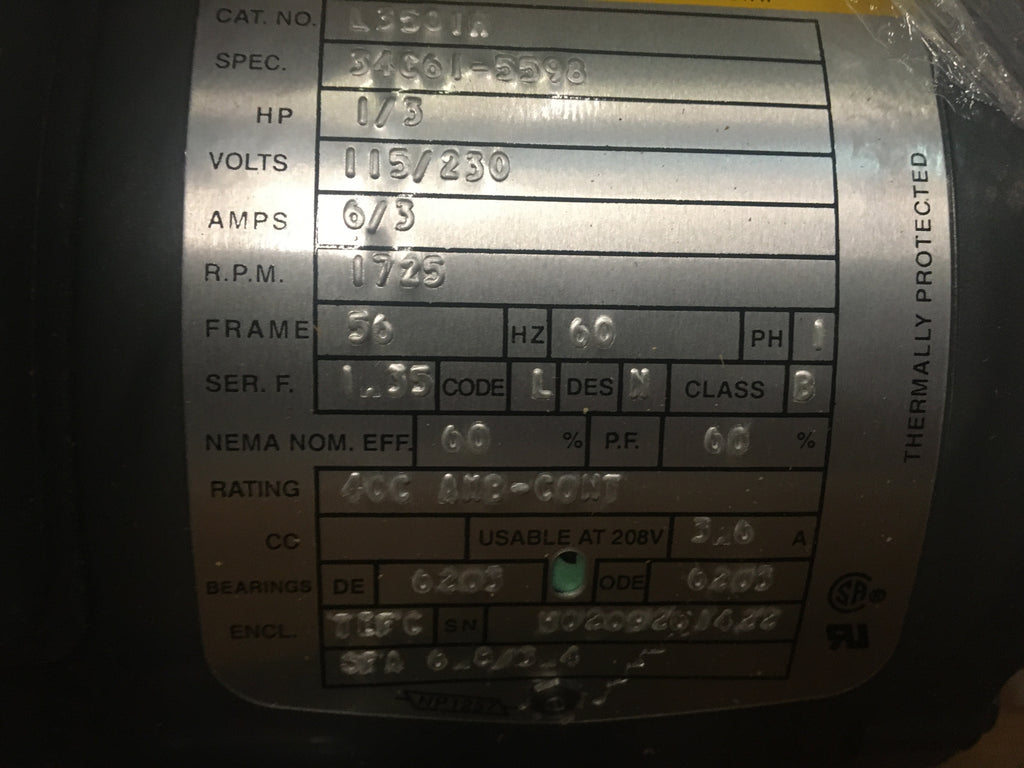

NEW!!! Baldor Thermally Protected L3501M Motor 1/3HP 1725 RPM 115/230V TEFC NSN:6105-01-198-3065
BALDOR
Translation missing: en.products.product.out_of_stock_msg
Please fill out the form below for a price quote and availability on this item.
Alternating Current Motor
NSN: 6105-01-198-3065 | Model: L3501M/MODM28A
A motor which is designed for operation from an alternating current source. See also motor, control.
NSN Properties and Flags
NATO Stock Number
6105-01-198-3065
DEMIL
Yes - ITAR Controlled
Overall Height
6.875 inches
Overall Length
10.750 inches
Overall Width
8.437 inches
Keyway Width
0.188 inches single end
Keyway Depth
0.094 inches single end
Shaft Diameter
0.625 inches single end
Keyway Length
2.000 inches single end
Duty Cycle
Continuous
Inclosure Feature
Totally enclosed
Winding Type
Induction-split phase
Mounting Method
Fixed base
Mounting Facility Type And Quantity
4 slot
Cooling Method
Fan cooled
Inclosure Specificationification
Nema
Frame Size Designation
56
Power Rating
0.333 horsepower output
Center To Center Distance Between Mounting Facilities Parallel To Length
3.000 inches
Rotor Speed Rating In Rpm
1725.0 single full load
Center To Center Distance Between Mounting Facilities Parallel To Width
4.875 inches
Connection Type And Voltage Rating In Volts
115.0 line to neutral first multiple input or 230.0 line to neutral second multiple input
Phase
Single input
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
