R & B Electronics Bus Conductor NSN:6150-01-228-6035 P/N:RB4S026-7-10-2 Model: 4S026-7-10-2

Please fill out the form below for a price quote and availability on this item.

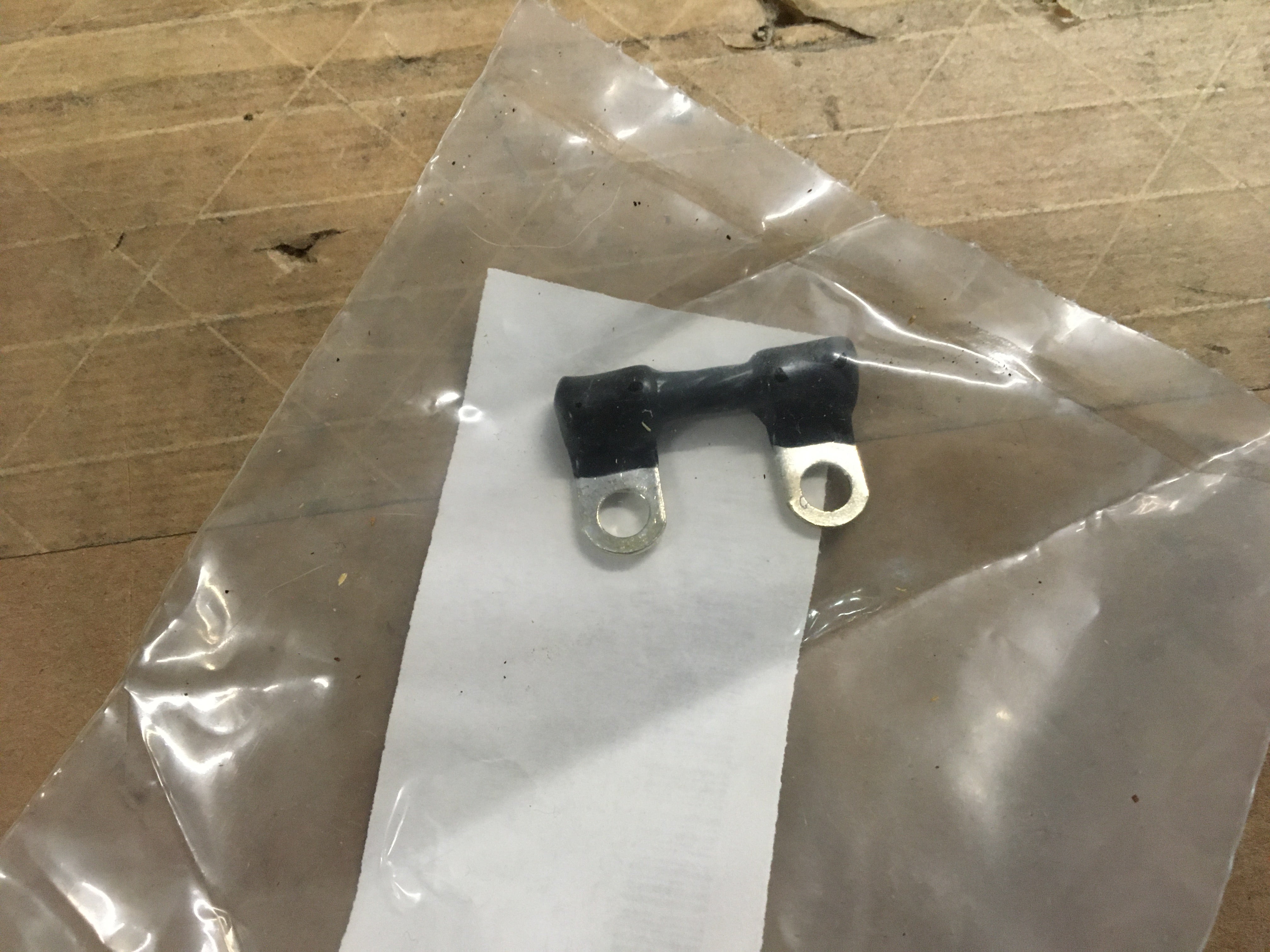

Conductor Bus

NSN: 6150-01-228-6035 | Model: 4S026-7-10-2
ITAR Registered seal

An item made of rigid or semi rigid conductive material, usually employed in the distribution of heavy electrical current. It is cut to specific lengths and is shaped, drilled, tapped or otherwise terminated. It may be fabricated in any of various cross-sectional shapes and sizes and may include terminal lugs. It may be designed to connect two or more screw or stud terminations. Excludes terminal strip, grounding.

NSN Properties and Flags
NATO Stock Number
6150-01-228-6035
DEMIL
Yes - ITAR Controlled
Body Cross-sectional Shape
Flat
Overall Length
1.136 inches
Cross-sectional Height
0.032 inches
Cross-sectional Width
0.695 inches
Mounting Configuration
Two 0.198 in. Diameter holes 0.806 in. C to c
Construction
Solid
Material
Copper
Material Specification
QQ-W-343 federal specification single material response
Surface Treatment
Tin



This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
