Bushing Sleeve NSN:3120-01-318-3565 P/N:2006904-51

Please fill out the form below for a price quote and availability on this item.

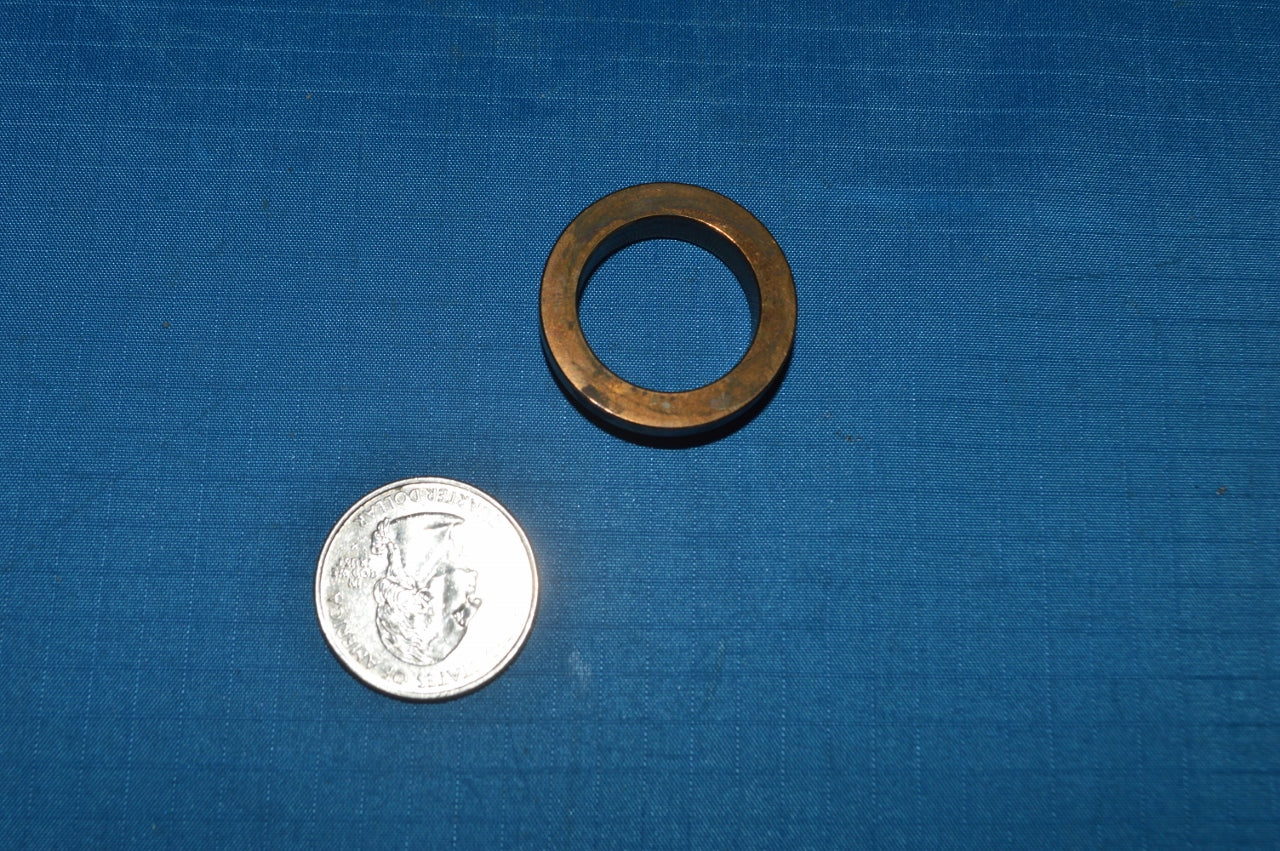

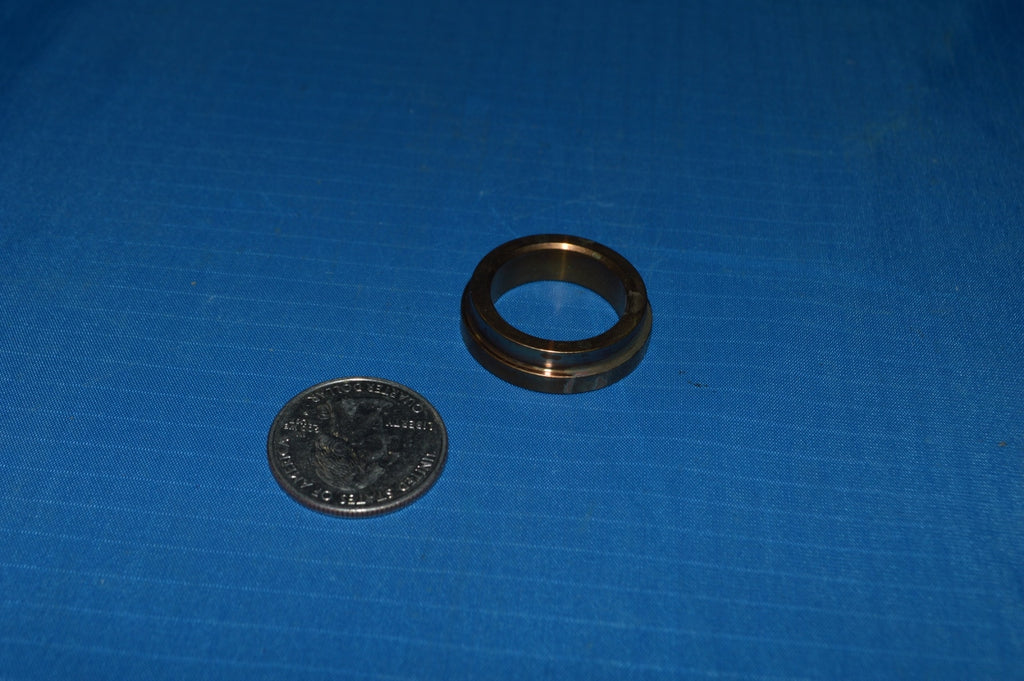

Sleeve Bushing

SKU: 3120013183565 | Model: 2006904-51
NSN 3120-01-318-3565 NSN 3120-01-318-3565

Specifications from the Manufacturer

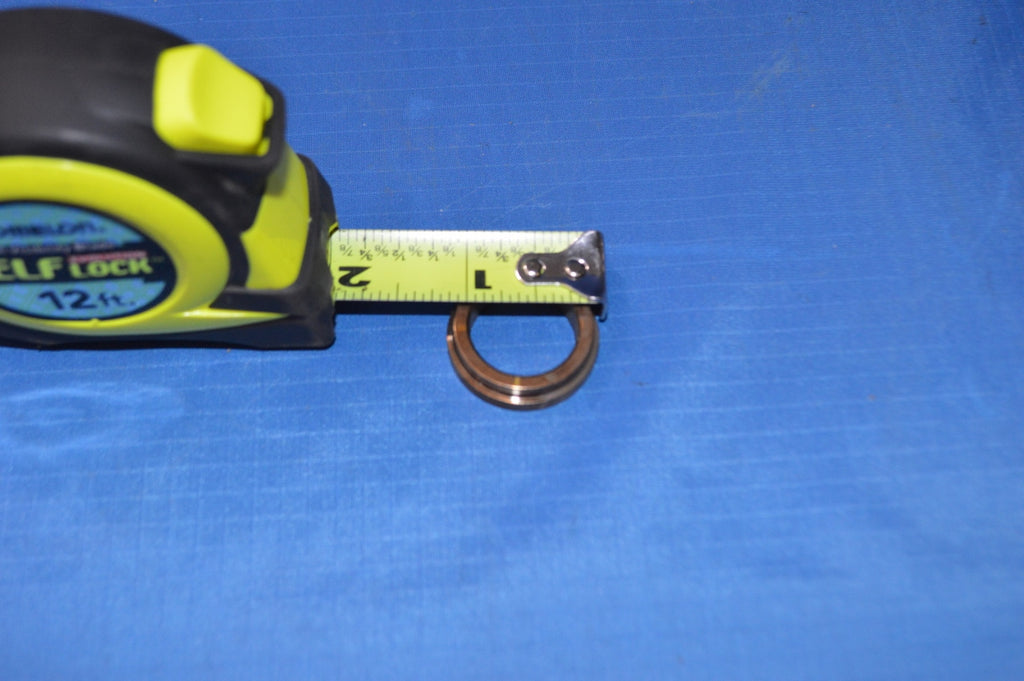

Overall Length:
0.1430 inches nominal
Body Outside Diameter:
1.0200 inches nominal
Body Inside Diameter:
0.7800 inches nominal
Flange Outside Diameter:
1.1250 inches nominal
Flange Width:
0.1400 inches nominal
Corner Shape:
Square all corners
Special Features:
Repair bushing for p/ns 2006404-63 and 2006404-283 (3120-01-059-8043); used on nose landing gear drag brace of the f-16 acft
Copper alloy overall
Material Document And Classification:
Qq-c-530 fed spec single material response overall
Style Designator:
22c solid, external flange one end

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
